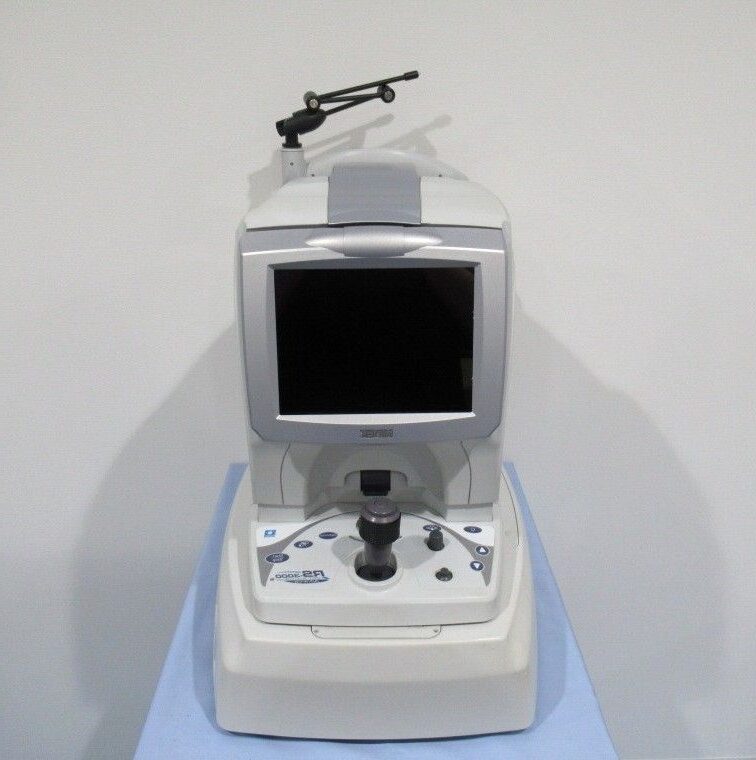

Nidek RS‑3000 Advance OCT | Pre-owned Spectral OCT
In Stock
2019 Nidek RS‑3000 Advance OCT for sale with SLO integration, wide‑area scanning and auto‑tracking. Refurbished by experts.
Description
The NIDEK RS-3000 Advance Optical Coherence Tomography (OCT) system is a high-performance imaging platform designed for advanced retinal diagnostics, glaucoma assessment, and anterior segment analysis. Utilizing spectral domain OCT technology, it delivers ultra-high resolution images, rapid scan speeds, and precise layer segmentation for accurate clinical evaluation.
With integrated confocal scanning laser ophthalmoscope (SLO) fundus imaging, en face OCT capability, and powerful analysis software, the RS-3000 Advance supports comprehensive eye care from screening to complex pathology management. Optional anterior segment modules expand its utility to corneal and angle measurements, making it an ideal solution for ophthalmology clinics seeking speed, accuracy, and reliability. This unit is available for sale and in excellent condition, ready to enhance diagnostic capabilities. Available now for sale and in excellent condition, for each refurbished unit from GMG is thoroughly tested, offering sustainable eye‑care technology for all your indispensable modern ophthalmic practices assets .
Key Features
- Spectral Domain OCT with optical resolution: Z: 7 µm, X-Y: 20 µm; digital resolution: Z: 4 µm, X-Y: 3 µm.
- High Scan Speed – Up to 53,000 A-scans/sec for faster exams and reduced motion artifacts.
- Scan Range – X: 3–12 mm (12 mm for line scan), Y: 3–9 mm, Z: 2.1 mm.
- Light Source – Superluminescent diode (SLD) at 880 nm.
- Fast 3D Acquisition – 1.6 seconds in regular mode.
- Integrated Fixation – Internal (637 nm) and external (630/565 nm) fixation lamps.
- Auto Alignment with Z-direction adjustment.
- Small Pupil Imaging – Minimum pupil diameter: 2.5 mm.
- Focus Range – -15 D to +10 D.
- Working Distance – 35.5 mm.
- Advanced Retinal Analysis – Segmentation of 6+1 retinal layers, macular thickness map, RNFL thickness map, NFL+GCL+IPL analysis, optic nerve analysis, and follow-up analysis.
- Confocal SLO Imaging – 785 nm source, 40° × 30° field of view (zoom to 20° × 15°).
- Tiltable 8.4″ Color LCD Display for ease of use.
- PC Networking – Compatible with NAVIS-EX image filing software with DICOM connectivity.
- En Face OCT – Visualization of retinal pathology and vascular structure with selectable depth offsets.
- Image Averaging – Up to 120 images for high clarity.
- Optional Anterior Segment Module – Corneal thickness measurement/map, anterior chamber angle (ACA) measurement, AOD500/750, and TISA500/750.
- Flexible Scan Patterns – Retina: macula line, cross, map, multi, radial, disc circle, map, radial. Cornea: line, cross, radial, ACA line.
- Follow-up and Tracing Functions – Torsion eye tracker, Tracing HD Plus, HD checker, select & rescan, auto shot.
- Compact Dimensions – Main unit: 380 (W) × 524 (D) × 499–531 (H) mm; weight 34 kg.
Specifications
OCT Scanning
- Principle: Spectral domain OCT
- Optical Resolution: Z: 7 µm, X-Y: 20 µm
- Digital Resolution: Z: 4 µm, X-Y: 3 µm
- Scan Range: X: 3–12 mm, Y: 3–9 mm, Z: 2.1 mm
- Light Source: SLD, 880 nm
- Scan Speed: Max. 53,000 A-scans/sec
- 3-D Acquisition Time: 1.6 sec (regular mode)
- Internal Fixation Lamp: 637 nm
- External Fixation Lamp: 630/565 nm
- Auto Alignment: Z direction
- Min. Pupil Diameter: 2.5 mm
- Focus Range: –15 D to +10 D (VD = 12 mm)
- Working Distance: 35.5 mm
- Analysis: 6+1 retinal layers segmentation, macular thickness/RNFL maps, NFL+GCL+IPL analysis, optic nerve analysis, follow-up
Fundus Surface Imaging
- Principle: Confocal scanning laser ophthalmoscope (SLO)
- SLO Light Source: 785 nm
- Field of View: 40° × 30° (zoom: 20° × 15°)
Display & Connectivity
- Tiltable 8.4" color LCD display
- PC networking available
- NAVIS-EX software with DICOM support
Power
- AC 100/120/230 V, 50/60 Hz
- Power Consumption: 300 VA
- Max. Transformer Output: 1,000 VA
Dimensions & Weight (Main Unit)
- 380 (W) × 524 (D) × 499–531 (H) mm
- Weight: 34 kg
Optional Anterior Segment Module
- Measurements: Corneal thickness (apex and user-selected sites), ACA, AOD500/750, TISA500/750
- Corneal thickness map in radial directions
Optional Motorized Optical Table
- 639 (W) × 472 (D) × 600–850 (H) mm; 28 kg; AC 100 V; 150 W
Optional PC Rack
- 620 (W) × 460 (D) × 700 (H) mm; 29 kg
